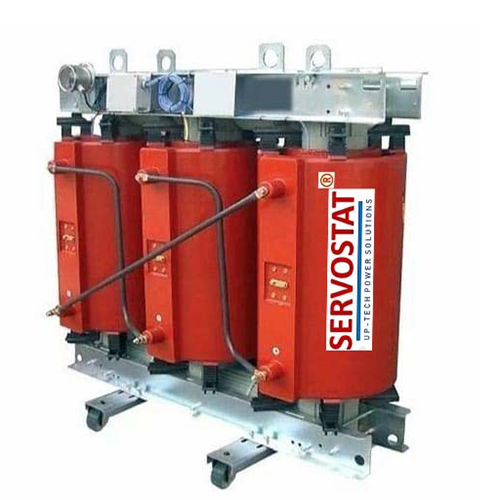

Dry Type Transformer

Dry Type Transformer Specification

Dimension (L*W*H)
Custom, depends on rating (e.g., 1400 x 950 x 1600 mm)

Power
Up to 2500 kVA

Ambient Temperature
-10C to 40C

Capacity
100 kVA to 2500 kVA

Suitable For
Indoor/Outdoor Installation

Product Type
Dry Type Transformer

Material
Copper/Aluminum Winding, High-Grade Silicon Steel Core

Input Voltage
11 kV / 33 kV

Output Voltage
433 V / 415 V / 400 V

Usage
Industrial/Commercial Power Distribution

Rated Frequency
50 Hz / 60 Hz

Voltage Range
Up to 33 kV

Size
Custom/varies with rating

Weight
Varies with Capacity (e.g., 500 kg to 3500 kg)

Short Circuit Impedance
4% - 6%, As per Specification

Fire Resistance
Self-Extinguishing, No Oil

Efficiency
Up to 99%

Connection Type
Delta / Star / Zig-zag (as per requirement)

Tap Changer
Off Circuit Tap Link / On Load Tap Changer (Optional)

Vector Group
Dyn11 (Standard), Others on Request

Enclosure
IP23 / IP31 / IP54 (Optional)

Relative Humidity
Up to 95% (Non-condensing)

Insulation Class
Class F or Class H

Mounting Type
Floor Mounted

Cooling Type
AN (Air Natural) / AF (Air Forced)

Standards
IS 11171 / IEC 60076

Noise Level
< 60 dB at 1 meter

Temperature Rise
55C (Winding) / 60C (Core)

Painting
Epoxy Powder Coated for Corrosion Resistance

Dry Type Transformer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Dry Type Transformer

Spotlight on value and performance: our masterful Dry Type Transformer is designed for heroic reliability in industrial and commercial power distribution. Ending soon, don't miss this best-in-class solution, available in AN (Air Natural) or AF (Air Forced) cooling, and supporting Class F or H insulation. Vector Group Dyn11 is standard, with options on request. Efficiency reaches up to 99%, with robust off-circuit or on-load tap changer, fire-resistant self-extinguishing build, and advanced epoxy powder coating. Engineered to IS 11171 / IEC 60076 standards, this transformer is your trusted energy hero for impeccable results.

Key Features and Areas of Use

This dry type transformer features exceptional durability, self-extinguishing fire resistance, and noise levels below 60 dB at 1 meter. It is floor mounted and suitable for both indoor and outdoor installation, with optional enclosures (IP23/IP31/IP54) for additional protection. Offering copper or aluminum windings, the high-grade silicon steel core ensures reliable performance in harsh conditions. Ideal for industrial and commercial settings where safety, efficiency, and flexibility are crucial.

Sample Availability and Domestic Shipment Details

Samples of our dry type transformer can be provided upon request at a competitive asking price. Standard shipment times are prompt, tailored to meet the delivery needs of the Indian domestic market. We serve various states and cities, ensuring efficient supply chain logistics for on-time installation and commissioning. Connect with us to discuss sample availability, estimate delivery time, and receive a quotation designed for your project's specifications and operational timeline.

FAQ's of Dry Type Transformer:

Q: How is the dry type transformer cooled and what are the insulation classes available?

A: This transformer utilizes Air Natural (AN) or Air Forced (AF) cooling, and is available with either Class F or Class H insulation for enhanced thermal endurance.

Q: What are the typical installation locations and ambient conditions for use?

A: The transformer is suitable for both indoor and outdoor applications, accommodating ambient temperatures from -10C to 40C and up to 95% non-condensing relative humidity.

Q: What are the benefits of using a dry type transformer in commercial or industrial settings?

A: Dry type transformers provide superior safety, self-extinguishing fire resistance, high efficiency (up to 99%), and low maintenance, making them ideal for power distribution in sensitive or demanding environments.

Q: When can I expect sample availability and delivery after placing an order?

A: Sample transformers are available upon request, with delivery times depending on customization and destination within the domestic Indian market. Shipment schedules are discussed during the order process.

Q: What customization options are offered for this transformer?

A: Various customization options are available, including capacity (100 kVA to 2500 kVA), enclosure ratings (IP23, IP31, IP54), tap changers (off circuit or on load), winding material, vector group, dimensions, and painting finish.

Q: Where is the dry type transformer manufactured and which markets do you supply?

A: Manufactured in India, we supply dealers, distributors, exporters, and end-users throughout the Indian domestic market and can support international export upon request.
