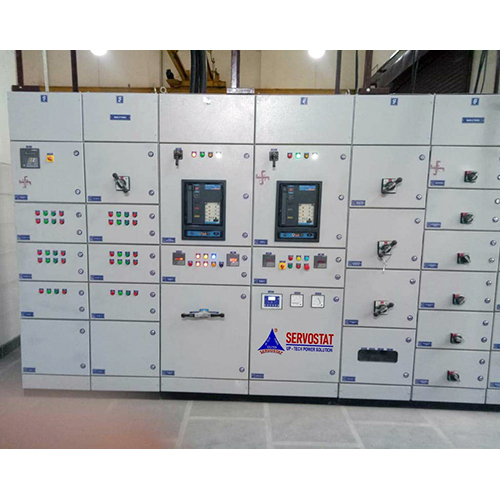

Load Synchronise Panel

Load Synchronise Panel Specification

Power
Up to 1100 kW (Customizable)

Dimension (L*W*H)
1200 mm x 800 mm x 400 mm

Capacity
Up to 1600A (Customizable)

Suitable For
Industries, Commercial Buildings, Hospitals, Data Centers

Ambient Temperature
-10C to +55C

Product Type
Load Synchronise Panel

Material
Mild Steel (MS) Sheet, Powder Coated

Socket Type
Industrial Grade IEC Standard

Input Voltage
415V AC, 3 Phase

Output Voltage
415V AC, 3 Phase

Usage
Other

Rated Frequency
50 Hz

Voltage Range
380V - 440V AC

Size
Standard/Customizable

Weight
120-180 Kg (Depending on Size & Capacity)

Charger Type
Automatic Battery Charger Included

Auxiliary Supply
230V AC / 24V DC

Cable Entry
Bottom/Top as per Requirement

Cable Termination
Lugged and Clamped

Wiring
Ferrule Numbered, IS Standard Marked Wires

Display
Digital LCD/LED Multifunction Metering

Cooling
Natural Air or Forced Fan Ventilation

Panel Type
Floor Mounted, Indoor/Outdoor (IP54/IP55)

Indication
LED Indications for Breaker ON/OFF, Synchronised, Faults

Protection Features
Overload, Short Circuit, Earth Fault & Phase Failure Protection

Mounting Type
Skid/Floor Mounted

Compliance Standard
IEC 61439, IS 8623

Testing
Factory Tested for Routine & Functional Tests

Enclosure Color
Siemens Grey/Customizable

Breaker Type
ACB/MCCB/Contactors as per Load

Control System
Microprocessor/PLC Based Synchronising Control

Busbar Material
Electrolytic Copper High Conductivity

Operation Mode
Automatic/Manual/Remote (Compatible with SCADA/BMS)

Load Synchronise Panel Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

Load Synchronise Panel About

Experience crackerjack performance and wondrous efficiency with our Load Synchronise Panel, engineered for prodigious control and safety in synchronising multiple generators or main supplies. Indulge in sizzling innovation-our panel features digital LCD/LED multifunction metering, robust protection against overloads, short circuits, and more. Benefit from reduced price offerings and competitive pricing straight from India's leading manufacturer, exporter, and dealer network. This versatile solution boasts a floor-mounted, mild steel construction with IP54/IP55 enclosure, customizable capacity up to 1600A, Siemens Grey finish, and is factory-tested with IS-standard wiring. The perfect fit for industries, hospitals, and commercial spaces!

Versatile Industrial Solution: Built for Commercial Needs

The Load Synchronise Panel is meticulously crafted for demanding industrial environments, commercial complexes, data centers, and hospitals. Built with high-conductivity electrolytic copper busbars and premium mild steel sheet (powder coated), it ensures longevity and reliability. Suitable for both indoor and outdoor installations, this floor-mounted panel supports automatic, manual, or remote SCADA/BMS control. Its prodigious adaptability and robust material features make it a trusted choice for synchronization needs across various sectors and utilities.

Secure Shipping and Quick Dispatch: Global Export Commitment

Your Load Synchronise Panel arrives in secure, robust packaging ensuring complete protection during transit. With meticulous attention to packaging details, we guarantee products remain pristine upon delivery. Swift dispatch is standard, reducing lead time for urgent projects. We operate from major FOB ports across India, catering to main export markets including Asia, Africa, and the Middle East. Our crackerjack logistics ensure your competitive pricing advantage is matched by seamless, on-time delivery wherever you are.

FAQ's of Load Synchronise Panel:

Q: How does the Load Synchronise Panel handle multiple generator synchronisation?

A: The panel utilises a microprocessor or PLC-based synchronising control system that automatically matches voltage, frequency, and phase sequence, ensuring safe and seamless synchronisation of multiple generators or mains supply.

Q: What are the primary protection features of this panel?

A: It offers complete protection against overload, short circuit, earth fault, and phase failure. LED indications promptly signal any faults, enhancing operational safety and reliability.

Q: Where can the Load Synchronise Panel be installed?

A: Designed for versatility, the panel is suitable for both indoor and outdoor installations, complying with IP54/IP55 standards and adaptable to a variety of facility requirements.

Q: What materials are used, and why are they important?

A: Constructed from powder-coated mild steel with high-conductivity electrolytic copper busbars, the panel promises outstanding durability and minimal energy loss during operation, ideal for rigorous industrial and commercial settings.

Q: When is the best time to consider upgrading to a synchronising panel?

A: If your facility relies on multiple power sources (generators or mains), upgrading to a synchronising panel can optimise load management, reduce downtime, and enhance overall energy efficiency.
