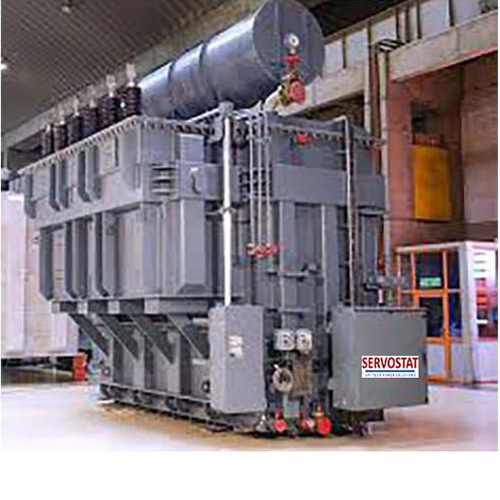

Reactor Transformer

Reactor Transformer Specification

Capacity
100-2000 kVA

Load Loss
As per IS Standards (typ. 1.2% of rated power)

Standard
IS 2026, IEC 60076

Coil Material
High conductivity copper

High Voltage
Up to 33 kV

Low Voltage
415-1100 V

Cooling Type
ONAN (Oil Natural Air Natural)

Operating Temperature
-25C to +50C

Voltage Booster Type
Series Reactor

Dimension (L*W*H)
As per design specification (example: 1200mm x 800mm x 1500mm)

Rated Voltage
11 kV / 22 kV / 33 kV (customizable)

Product Type
Reactor Transformer

Material
Copper windings with laminated silicon steel core

Output
Customized as per requirements

Frequency (MHz)
50-60 Hz

Efficiency
Up to 98%

Phase
Three Phase

Usage
Industrial electrical systems, power transmission, current limiting circuits

Coil Structure
Toroidal/Layer Wound

Coil Number
2-4 (as per design)

Power Scope
Up to 2000 kVA

Weight
Varies by rating (typically 100-1200 kg)

Number of Taps
On request

Paint Type
Epoxy Coated/PU Painted

Winding Technique
Double Layer/Interleaved

Duty Cycle
Continuous

Service Life
20+ Years

Protection
IP23/IP44 as per requirement

Mounting
Floor Mounted

Noise Level
< 60 dB

Core Type
Laminated Steel, Low Loss Core

Impedance
As required (typically 4%-10%)

Ambient Humidity
Maximum 95% RH

Bushing Type
Porcelain/Oil Filled

Insulation Class
Class F/H

Reactor Transformer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Reactor Transformer About

Experience a grandiose leap in performance with our Reactor Transformer-crafted for pivotal roles in industrial electrical systems and power transmission. Featuring a perfect blend of high-conductivity copper windings and laminated silicon steel core, it offers up to 98% efficiency with minimal noise (<60 dB) and long-lasting service life of 20+ years. Choose insulation class F/H, porcelain or oil-filled bushings, IP23/IP44 protection, and custom capacity (100-2000 kVA, 11/22/33 kV). Instant Checkout available-Last Chance to Try Now for tailored, high-standard solutions!

Expanding Possibilities: Applications & Advantages

Our Reactor Transformer is perfect for diverse applications-current limiting, voltage control, and power quality improvement in energy-intensive industries. Its double-layer/interleaved winding and low-loss toroidal or layer wound coils deliver exceptional reliability. Compact epoxy/PU-painted design ensures durability, while customizable tap numbers and output provide versatile integration. Application is seamless-simply mount, connect, and energize-making it pivotal for both upgrades and new installations, supporting continuous duty under challenging ambient conditions.

Reliable Supply & Comprehensive Packaging Details

With robust supply ability across India, each Reactor Transformer is securely packed to withstand transit expenditures and freight risks, ensuring safe arrival at your site. List price and cost structures are transparent, with customizations available as per client requirements. FOB ports include major Indian hubs, offering global reach for exporters, dealers, and traders. Our experienced team manages logistics and streamlined delivery, maintaining your project timeline and budget with professional attention to detail.

FAQ's of Reactor Transformer:

Q: How is the Reactor Transformer protected from environmental factors?

A: The Reactor Transformer is equipped with IP23 or IP44 protection, high-quality epoxy or PU paint coating, and is designed to operate reliably up to 95% relative humidity and temperatures from -25C to +50C.

Q: What industrial applications benefit most from this transformer?

A: Industries requiring power transmission, current limiting, voltage control, and stable energy distribution, such as manufacturing plants and utilities, benefit most from our reactor transformer's perfect blend of efficiency and durability.

Q: When should I consider customizing the transformer's capacity and voltage?

A: Customizations for capacity (100-2000 kVA) and voltage (11/22/33 kV) should be considered during project planning to ensure the transformer meets your precise application and operational requirements.

Q: Where can this transformer be installed, and how is it mounted?

A: Our reactor transformer is designed for floor mounting in industrial settings, compatible with diverse plant layouts and easily integrated into existing electrical systems.

Q: What is the process for ordering and delivery?

A: Ordering is seamless with Instant Checkout options-simply contact us or your nearest dealer. Packaging is secured for optimal protection, and shipping is arranged via major Indian FOB ports to global destinations.

Q: How does this product add value for dealers, exporters, and service providers?

A: With customizable features, adherence to IS/IEC standards, and reliable after-sales support, our reactor transformer is a pivotal addition for dealers, exporters, service providers, and manufacturers focused on quality and lasting performance.
