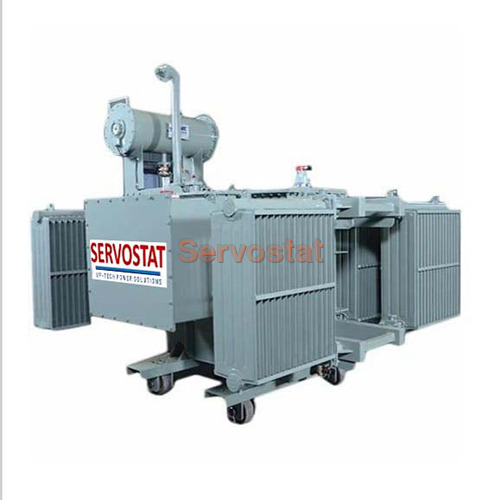

Converter Duty Transformer

Converter Duty Transformer Specification

Operating Temperature
-25C to +55C

Coil Material
Electrolytic Grade Copper

Capacity
100 kVA to 5000 kVA

Cooling Type
ONAN / ONAF

Standard
IS 2026 / IEC 60076

Low Voltage
Up to 3.3 kV

Rated Voltage
3.3 kV / 6.6 kV / 11 kV / 33 kV

Load Loss
As per IS 2026 / IEC 60076

Dimension (L*W*H)
Custom as per Design

High Voltage
Up to 33 kV

Product Type
Converter Duty Transformer

Material
Copper / CRGO Laminations

Output
Custom As Per Requirement

Frequency (MHz)
50 Hz

Efficiency
Up to 98%

Phase
Three Phase

Usage
Industrial, Power Electronics, Converter Applications

Coil Structure
Layer Wound

Coil Number
2 or 3 (Per Phase)

Power Scope
100 kVA to 5000 kVA

Weight
Varies as per Rating (e.g. 2-15 Tons)

Core Construction
Step-lap CRGO Core

Tap Changer
Off-circuit or On Load Tap Changer as per Specification

Paint/Finish
Epoxy/PU Painted for Outdoor/Indoor Installation

Cooling Medium
Oil Cooled

Duty Cycle
Suitable for Continuous Duty

Insulation Class
Class A / Class F

Dielectric Strength
As per National/International Standards

Mounting Type
Wheel Mounted or Fixed

Winding Connection
Dyn11 / Yyn0 / As per customer requirement

Noise Level
Within IEC/IS limits

Protection
Buchholz Relay, PRV, OTI, WTI, Silica Gel Breather

Impedance
Designed as per System Requirement (Typically 5%-10%)

Ambient Temperature
-10C to +50C

Converter Duty Transformer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Converter Duty Transformer

Experience the last chance to secure this exquisite Converter Duty Transformer, now available at a fresh markdown rate. Engineered with renowned step-lap CRGO core technology and noble design principles, this transformer is tailored for demanding industrial and converter applications. It offers exceptional impedance (typically 5%-10%) as per system requirements and features off-circuit/on-load tap changers, Class A/F insulation, continuous duty cycle, and superior protection-Buchholz Relay, PRV, OTI, WTI, and more. Choose from wheel-mounted or fixed installations, epoxy/PU finish, and customized voltage outputs, ensuring unmatched reliability and performance within global standards.

Comprehensive Usage and Application Excellence

Our Converter Duty Transformer is crafted for industrial and power electronic environments, supporting continuous duty cycles and a variety of converter applications. Its versatility spans usage in heavy-duty manufacturing, process industries, and automation media requiring superior electrical reliability. The product is enriched with extra features such as advanced protection mechanisms, adaptable winding connections (Dyn11/Yyn0), and both oil-cooled and epoxy or PU-finished options, providing robust solutions for diverse operational needs.

Swift Supply, Certified Assurance and Secure Shipment

We supply Converter Duty Transformers adhering strictly to IS 2026 and IEC 60076 certifications. Delivery times are maintained at industry-leading rates for both custom and standard models, thanks to our efficient shipment procedures. Packaging is robust and weather-resistant, designed for secure transit across India and internationally. Clients benefit from well-coordinated supply chains, timely shipments, and complete documentation for seamless commissioning at your site.

FAQ's of Converter Duty Transformer:

Q: How does the tap changer on the Converter Duty Transformer operate?

A: The tap changer can be configured as either off-circuit or on-load, based on your specification, allowing seamless voltage adjustment to suit different operational requirements.

Q: What applications are ideally suited for this transformer?

A: This Converter Duty Transformer is specifically designed for industrial, power electronics, and converter applications, ensuring reliable performance in demanding environments where uninterrupted operation is essential.

Q: What is the process for ordering a custom-designed Converter Duty Transformer?

A: Simply contact our sales team with your technical specifications. Our experts will guide you through selection, customization, and provide a tailored quotation to ensure the perfect transformer fit for your requirements.

Q: Where can the transformer be installed?

A: It is suitable for both outdoor and indoor installations, thanks to durable epoxy or PU coatings and adaptability to varied ambient temperatures, from -10C to +50C.

Q: What are the benefits of the protection mechanisms included?

A: Integrated protection devices such as Buchholz Relay, PRV, OTI, WTI, and Silica Gel Breather ensure operational safety, extended service life, and quick response to fault conditions, minimizing downtime.

Q: When and how will I receive my transformer after placing an order?

A: Delivery timelines are project-specific and communicated at order confirmation. Secure packaging and reliable shipment processes ensure your transformer arrives on time and in optimal condition.
