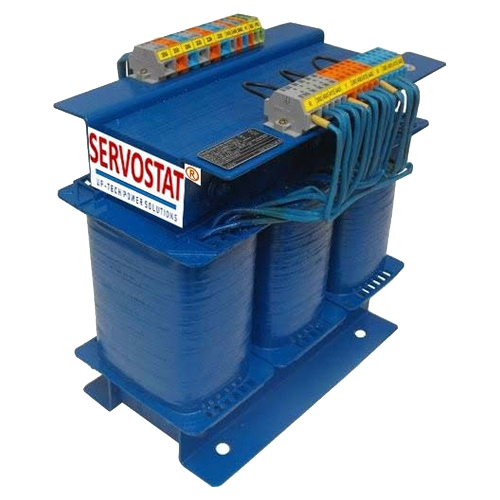

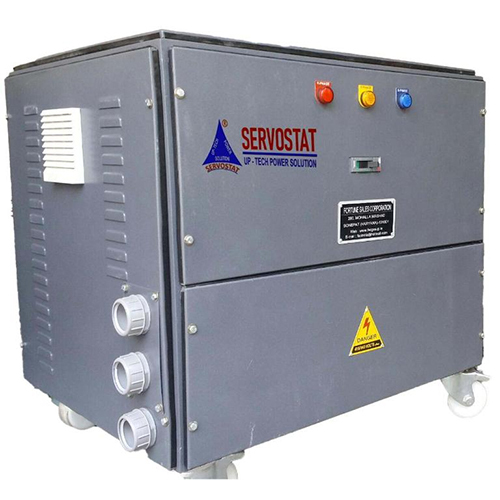

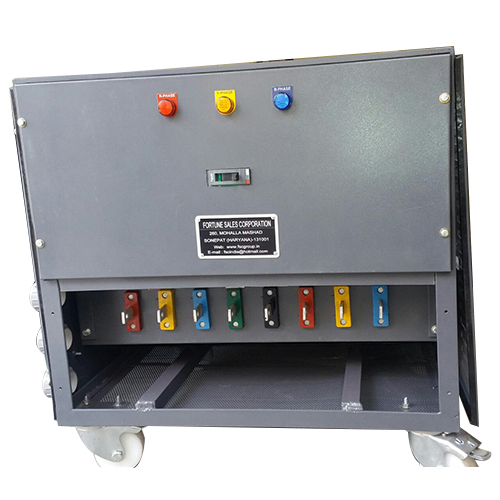

Air And Oil Cooled Type Isolation Transformer

Air And Oil Cooled Type Isolation Transformer Specification

Rated Voltage
110V / 220V / 415V / Custom

Standard
IS 2026 / IEC 60076

Cooling Type
Air Cooled / Oil Cooled

Coil Material
Electrolytic Copper

Capacity
1 kVA to 1000 kVA

Dimension (L*W*H)
Varies by rating and design (e.g., 600 x 400 x 700 mm for 100 kVA unit)

Load Loss
As per IS standard (typically <2%)

Low Voltage
220V / 415V / Custom

Operating Temperature
-15C to +50C

High Voltage
Up to 11 kV

Product Type
Isolation Transformer

Material
Copper Winding, Silicon Steel Core

Output
Customizable as per requirement

Frequency (MHz)
50-60 Hz

Efficiency
98% (typical)

Phase
Single Phase / Three Phase

Usage
Electrical Isolation and Voltage Regulation in Industrial, Commercial, and Medical Applications

Coil Structure
Toroidal / Layer Wound

Coil Number
Two (Primary and Secondary)

Power Scope
1 kVA to 1000 kVA

Weight
Depends on capacity (Approx. 25 kg - 1200 kg)

Connection Type
Star / Delta / Custom

Noise Level
65 dB

Insulation Class
Class F/H

Enclosure Protection
IP23 / IP 54 (as per requirement)

Dielectric Strength
2.5 kV - 5 kV

Mounting Type
Floor Mount

Impedance
4% - 6% (as per design)

Ambient Humidity
<95% RH non-condensing

Service Life
>15 Years with Proper Maintenance

Cooling Oil Type
Transformer Oil IS 335 (for Oil Cooled Variant)

Air And Oil Cooled Type Isolation Transformer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Air And Oil Cooled Type Isolation Transformer

Experience the elite new release in electrical engineering with our Air and Oil Cooled Type Isolation Transformer, tailored for champions in industrial, commercial, and medical domains. Crafted with top-drawer copper windings and a robust silicon steel core, this potent transformer boasts impeccable insulation (Class F/H) and adaptable protection (IP23/IP54). Its industry-leading efficiency of 98% and formidable dielectric strength (up to 5 kV) ensure seamless performance. Available from 1 kVA to 1000 kVA, it's the gold-standard solution for voltage regulation and electrical isolation. Embrace reliability with over 15 years service life, now on sale!

Versatile Applications and Top Advantages

Air and Oil Cooled Type Isolation Transformers are the champion choice for electrical isolation and voltage regulation, excelling across industrial plants, commercial infrastructure, and the medical sector. The potent combination of copper windings and silicon steel core delivers advanced insulation and operational longevity. Available as floor-mount units in star, delta, or custom connection types, these transformers provide an efficient use type while adapting to both sensitive and high-load environments, ensuring safe, dependable power delivery.

Market Reach and Payment Terms

Our transformers are supplied throughout India's elite domestic markets and shipped goods reach various leading export zones worldwide. The competitive rate structure caters to each outlay-from small-scale enterprises to large industrial powers-making top-tier technology accessible. Flexible payment terms help distributors, dealers, and wholesalers manage costs smoothly while ensuring prompt shipment and reliable after-sales support. As trusted manufacturers and exporters, we offer tailored solutions to meet every market demand.

FAQ's of Air And Oil Cooled Type Isolation Transformer:

Q: How does the isolation transformer ensure electrical safety in different environments?

A: The transformer isolates primary and secondary circuits, protecting devices and personnel from electrical transients, surges, and faults in industrial, commercial, and medical settings.

Q: What are the core advantages of choosing an air or oil cooled isolation transformer?

A: Key advantages include superior thermal management, extended service life, and adaptable protection (IP23/IP54), making them ideal for challenging operational conditions.

Q: When should I use a custom connection type like Star, Delta, or custom configurations?

A: Custom connection configurations are recommended to match the specific voltage and load balancing requirements of your application for optimal performance and safety.

Q: Where are these transformers typically installed?

A: Floor-mount design enables easy installation in factories, hospitals, commercial buildings, and power distribution centers requiring effective electrical isolation and regulation.

Q: What process is followed for shipped goods and rate determination for export markets?

A: Export orders involve careful customization, packaging, and dispatch to international destinations. Rate determination depends on specifications, quantity, and outlay, ensuring competitive pricing.
