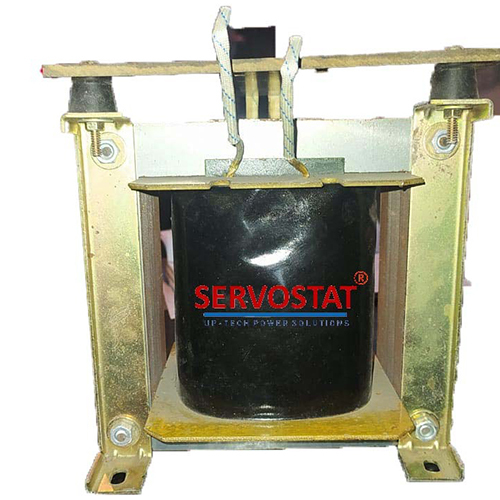

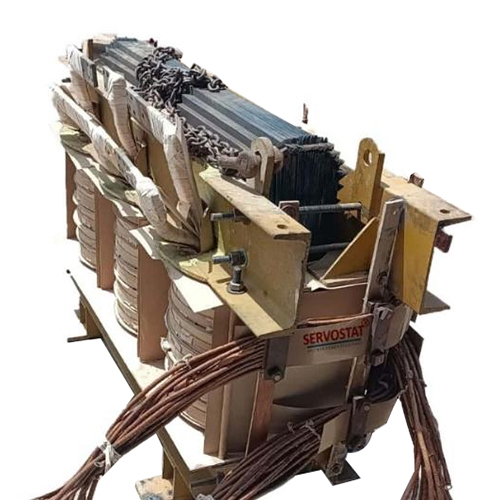

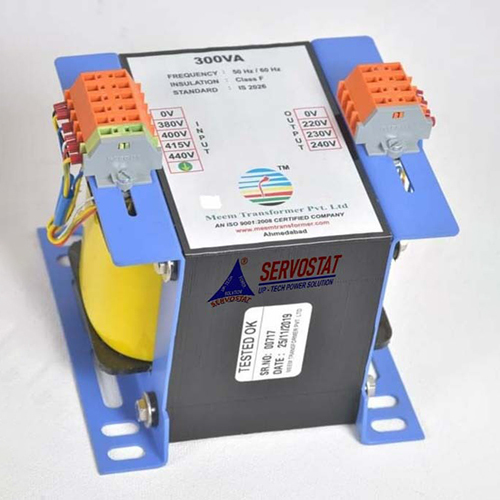

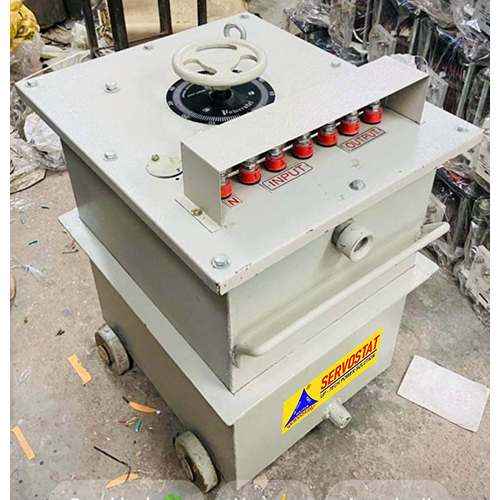

Air And Oil Cooled Type Step UP and Down Transformer

Air And Oil Cooled Type Step UP and Down Transformer Specification

Dimension (L*W*H)
As per design and rating

High Voltage
3.3 kV - 33 kV (as per specification)

Cooling Type
Air Cooled (AN) / Oil Cooled (ONAN, ONAF)

Capacity
10 kVA to 2500 kVA

Rated Voltage
Up to 33 kV

Operating Temperature
-10C to 55C

Low Voltage
415 V / 433 V / 690 V (custom ranges possible)

Standard
IS 2026 / IEC 60076 / BIS Certified

Voltage Booster Type
Step Up/Step Down

Load Loss
Minimized as per IS standard

Coil Material
Copper / Aluminum

Product Type
Step UP & Step Down Transformer

Material
High-quality Silicon Steel Core, Copper/Aluminum Windings

Output
Customized as per requirements

Frequency (MHz)
50/60 Hz

Efficiency
Up to 98%

Phase
Three Phase / Single Phase (Customizable)

Usage
Industrial, Power Distribution, Electrical Substations

Coil Structure
Layer Wound / Disk Wound

Coil Number
Double Winding

Power Scope
Up to 2500 kVA (Customized available)

Weight
As per design and ratings (typically 400 kg - 2500 kg)

Application
Industrial, Commercial, Renewable, Power Plants, Utilities

Core Construction
Cold Rolled Grain Oriented (CRGO) core

Winding Connection
Dyn11, Yyn0, or as specified

Impedance
4% - 7% (as per rating)

Protection
Overload, Short Circuit, Lightning Protection

Paint Finish
Epoxy / Powder Coated

Mounting
On Wheels / Skid Mounted

Insulation Class
Class F / Class H

Testing
Routine, Type & Special Test as per IS/IEC standards

Tapping Range
5% or as specified

Temperature Rise Limit
50C to 60C over ambient

Enclosure Protection
IP23 / IP33 / Customized

Air And Oil Cooled Type Step UP and Down Transformer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Air And Oil Cooled Type Step UP and Down Transformer

Discover the must-have Air and Oil Cooled Type Step Up and Down Transformer, engineered for prime performance and unparalleled reliability. Featured at the best price, this transformer boasts an opulent structure with high-quality silicon steel core and copper/aluminum windings. Supporting insulation class F/H, CRGO core construction, and customizable winding connections, it delivers up to 98% efficiency. Safety is paramount with advanced overload, short circuit, and lightning protection, while multiple mounting, enclosure, and voltage options make it ideal for industrial, commercial, renewable energy, and power utilities. Certified to IS/IEC standards.

Versatile Application and Industry Usage

The Air and Oil Cooled Type Step Up and Down Transformer is widely utilized in industrial, commercial, and renewable sectors. Suitable for power distribution, electrical substations, utilities, and power plants, it ensures precise voltage regulation and robust operation in demanding environments. Used as a voltage booster or reducer, the transformer supports diverse settings, assuring smooth electricity flow and superior efficiency across large-scale operations and critical infrastructure.

Stock Ready, Prompt Delivery, and Packaging

Stock ready units are maintained for rapid dispatching upon order completion, ensuring minimal lead time. FOB Port is available from major ports in India, serving the main domestic market and international destinations. Packaging details are securely handled with robust protection using wooden crates or as specified, guaranteeing safety during transit. Orders can be customized and are prepared to meet customer requirements, offering reliability from order initiation to final delivery.

FAQ's of Air And Oil Cooled Type Step UP and Down Transformer:

Q: How is the Air and Oil Cooled Step Up and Down Transformer protected during operation?

A: This transformer integrates advanced overload, short circuit, and lightning protection, ensuring operational safety and minimizing risks during heavy-duty applications.

Q: What are the available cooling types and their benefits?

A: You can select from air cooled (AN) or oil cooled (ONAN, ONAF) models. Air cooled units are maintenance-friendly, while oil cooled variants offer superior cooling for high-load or continuous operations.

Q: When should one choose a custom voltage or enclosure option?

A: Custom voltages and enclosure protections (IP23/IP33/customized) are ideal when standard configurations don't meet application-specific requirements or environmental conditions, ensuring optimized and safe performance.

Q: Where are these transformers commonly used?

A: They are primarily used in industrial plants, electrical substations, utilities, commercial buildings, and renewable energy installations for efficient and reliable power management.

Q: What is the process for ordering and receiving the transformer?

A: Once you confirm your requirements, production or dispatching begins. Orders are fulfilled promptly with routine and special testing as per IS/IEC standards, securely packed, and shipped from major Indian ports.
