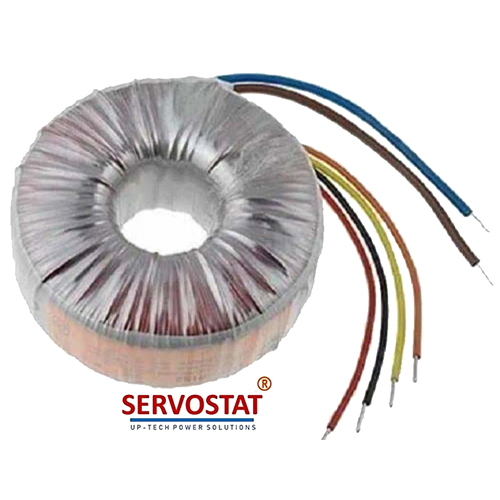

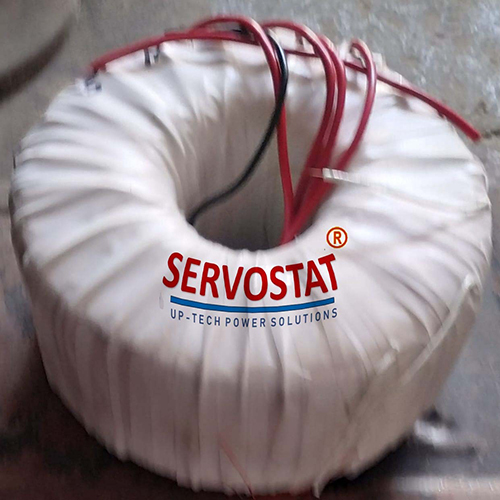

Toroidal Transformer

Toroidal Transformer Specification

Load Loss
Low load loss, high efficiency design

Standard
Complies with IEC/EN61558, CE certified

Voltage Booster Type
Step-up / Step-down (Custom as needed)

High Voltage
Up to 600V

Low Voltage
As per requirement (commonly 6V - 48V)

Dimension (L*W*H)
Varies by rating, typically compact circular form

Coil Material
Enamelled copper wire

Capacity
Customizable up to 10 kVA

Cooling Type
Air cooled / Natural convection

Rated Voltage
Primary 110V/230V AC; Secondary as specified

Operating Temperature
-20C to +80C

Product Type
Toroidal Transformer

Material
Copper windings with silicon steel core

Output
Multiple secondary voltage options

Frequency (MHz)
0.05 (typically 50Hz)

Efficiency
Up to 95%

Phase
Single Phase / Three Phase (Customizable)

Usage
Power distribution, audio equipment, electronic circuits

Coil Structure
Toroidal core, double insulated winding

Coil Number
2 or as per specification

Power Scope
10 VA to 10,000 VA

Weight
Depends on rating (e.g., 0.5 kg - 25 kg)

Finish
Vacuum impregnated for moisture protection

Application Examples
CNC machines, audio amplifiers, UPS, laboratory equipment

Insulation Class
Class B / Class F

Impedance
Low leakage inductance

Protection
Thermal fuse and over-current protection (optional)

Dielectric Strength
Up to 3 kV for 1 min

Mounting Type
Center bolt or band clamp

Noise Level
<35 dB (silent operation)

Connections
Lead wires / Screw terminals

Toroidal Transformer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Toroidal Transformer

Discover the kingly performance of our Toroidal Transformer, the ultimate choice for those seeking a fresh, top-drawer solution in power distribution and audio equipment. With a compact circular form and customizable capacity up to 10 kVA, this bargain delivers high efficiency, low noise (<35 dB), and silent operation. Benefit from low leakage inductance, robust thermal and over-current protection (optional), copper windings, and a silicon steel core. Complying with IEC/EN61558 and CE certified, it's ideal for CNC machines, amplifiers, UPS, and laboratory use. Available through India's leading dealers, exporters, and suppliers.

Key Extra Features & Specialized Applications

Our Toroidal Transformer impresses with additional features such as double insulated windings, vacuum impregnation for moisture protection, and versatility in mounting. Its top-grade finish and thermal protection make it suitable for demanding industrial environments, including plant applications like laboratory testing rigs, CNC machinery and high-fidelity audio setups. The silent, low-impedance design ensures seamless integration into precision electronic circuits, while the multiple secondary voltage options enable custom configurations for specialized projects.

Shipping, Markets & Packaging Details

Order processing is streamlined for fast turnaround at India's major FOB ports. Valuation practices ensure competitive pricing for all buyers, while shipped goods are protected with industrial-grade packaging, including bubble wrap and carton packing to prevent transport damage. Serving the main domestic market across India and ready for export, this toroidal transformer reaches manufacturers, distributors, retailers, and service providers with efficiency and care, guaranteeing product integrity upon delivery.

FAQ's of Toroidal Transformer:

Q: How does the toroidal transformer provide silent operation and high efficiency?

A: The toroidal design, combined with advanced insulation (Class B/F) and vacuum impregnation, keeps noise levels below 35 dB and maximizes efficiency up to 95%, ensuring quiet and reliable performance.

Q: What applications are recommended for this transformer?

A: This transformer is ideal for use in CNC machines, audio amplifiers, UPS systems, laboratory equipment, and a variety of electronic circuits, offering versatile power distribution options.

Q: When should I opt for a toroidal transformer with thermal fuse and over-current protection?

A: Thermal fuse and over-current protection are recommended when operating in environments with variable loads or risk of overload, enhancing safety and extending transformer lifespan.

Q: Where can I specify my custom voltage and capacity requirements?

A: Custom voltage and capacity options can be specified during order placement by contacting your dealer, distributor, or supplier, who will guide you through the customization process.

Q: What is the process for shipping and packaging the transformer?

A: After order processing and valuation, transformers are securely packaged using industrial materials and shipped from major Indian FOB ports to ensure safe arrival at your specified location.

Q: What are the benefits of the low leakage inductance and multiple secondary outputs?

A: Low leakage inductance enhances power transfer efficiency and reduces interference, while multiple secondary outputs provide flexibility, allowing a single transformer to supply varied voltage levels for different applications.
