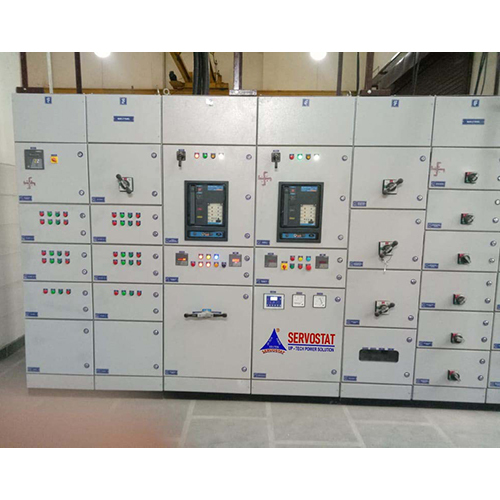

Load Synchronise Panel

Load Synchronise Panel Specification

Operating Voltage
380-440V AC

Connectivity Type
Wired

Panel Type
Floor Mounted

Components
MCB, MCCB, Contactors, Relays, Meters, CTs, PTs

Protection Class
Class I

Rated Current
2500A

Cabinet Material
Mild Steel

Features
Auto/Manual Synchronization, AMF, Protections, Fault Indication

Thickness
2 mm

Rated Operation Voltage
415V

Protection Level
IP 54

Rated Insulation Voltage
690V

Way
Customized as per requirement

Cover Material
MS Sheet

Base Material
CRCA Sheet Steel

Current Rating
Up to 2500A

Control System
Microprocessor/PLC Based

Cooling System
Air Ventilated with louvers

Product Type
Load Synchronise Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 60439, IS 8623

Surface Color
Siemens Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 2500A

Dimension (L*W*H)
Customizable

Application
Industrial Power Distribution

IP Rating
Ip54

Display Type
Digital Metering

Interlocking
Mechanical/Electrical

Mounting Type
Floor Standing

Earthing
Dual Earth Busbar Provided

Door Type
Double Door with Gasket

Cable Entry
Top/Bottom Cable Entry

Operating Humidity
Up to 95% RH, Non-condensing

Indications
LED for Phase, Fault, Synchronizing

Phase
Three Phase

Busbar Material
Electrolytic Copper / Aluminum

Communication Ports
RS485/Modbus optional

Auxiliary Supply
230V AC/24V DC

Ambient Temperature
-10C to +50C

Load Synchronise Panel Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
30 Days

About Load Synchronise Panel

Discover the affordable and opulent Load Synchronise Panel, engineered to offer a glorious solution for industrial power distribution. Crafted with a towering structure from premium electrolytic copper or aluminum busbars, this panel combines robust reliability with a discount on high-end features. Double door with gaskets ensures optimal safety, while dual earth busbars boost performance. The powder-coated, Siemens Grey mild steel finish exudes an elegant appeal. Suitable for demanding settings, it delivers up to 2500A current with advanced protection, digital metering, and auto/manual synchronization, ideal for professionals in India.

Versatile Application & Premium Features

The Load Synchronise Panel is ideal for diverse industrial applications, supporting power distribution across factories, plants, and commercial sites. Its durable powder-coated mild steel surface ensures longevity in humid environments. With dual earth busbars, digital metering, top/bottom cable entry, AMF, and advanced protection features, every detail is tailored for seamless integration. Microprocessor or PLC-based control systems and auto/manual synchronization options maximize safety and control, catering to the rigorous standards required in evolving industry sectors.

Main Market Presence, Payment Structure & Order Efficiency

The Load Synchronise Panel commands a premium position as a leading choice for export to Asia, Africa, and the Middle East, in addition to pan-India distribution. Dealers and distributors enjoy competitive rates, while exporters and retailers benefit from a responsive order processing system. Main domestic markets include all major Indian industrial hubs. Flexible payment terms like advance, LC, and online transfer cater to varying business needs, ensuring seamless transactions and prompt product delivery.

FAQ's of Load Synchronise Panel:

Q: How does the Load Synchronise Panel benefit industrial power distribution?

A: The panel offers reliable and efficient load synchronization, ensuring balanced power sharing and continuity during switching or generator operations. Its advanced protection and automation features enhance operational safety and minimize downtime.

Q: What is the process for installing and commissioning this panel?

A: Installation involves floor-mounting the panel in a suitable location, connecting input and output cables (top/bottom entry), and configuring the control system. Commissioning is performed by professionals to verify functionality, synchronization, and safety systems.

Q: Where can the Load Synchronise Panel be used?

A: This panel suits large factories, commercial complexes, and industrial power stations where seamless and safe power distribution with backup synchronization is essential. It is optimized for ambient temperatures from -10C to +50C and high humidity environments.

Q: When should a business consider upgrading to this panel?

A: Upgrade is recommended when there is a need for higher load capacity, improved automation, enhanced protection, or integration with modern monitoring systems in compliance with IEC and IS standards.

Q: What are the key features that distinguish this panel from standard offerings?

A: It features dual earth busbars, auto/manual synchronization, AMF capabilities, advanced digital metering, RS485/Modbus optional communication, and a robust IP54-rated, powder-coated enclosure. Customizable dimensions and premium materials add to its unique value.
