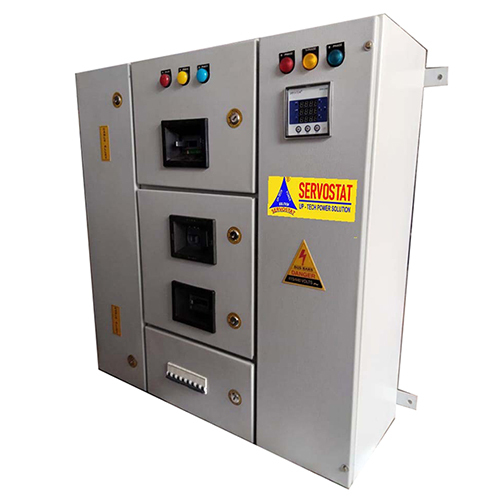

Panel Box and All Types of Panel

Panel Box and All Types of Panel Specification

Cooling System
Natural / Forced Air Cooling

Base Material
Mild Steel / SS

Operating Voltage
415V AC

Way
Single / Double / Multiple

Rated Operation Voltage
415V

Panel Type

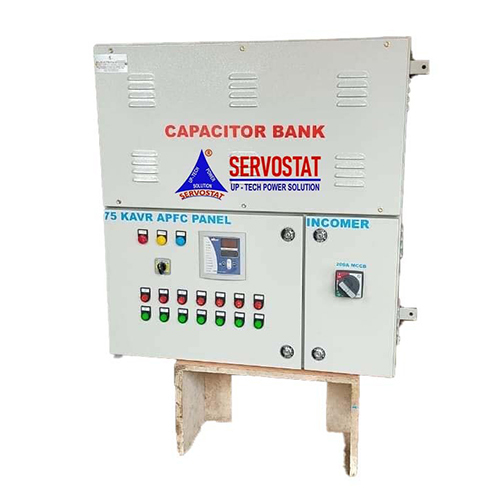

Distribution / Control / MCC / PCC / APFC / Feeder

Components
MCB / MCCB / Contactor / Relays / Indication Lamp / Ammeter / Voltmeter

Thickness
1.2mm / 1.6mm / 2mm

Features
Corrosion Resistant, Rugged Construction, Easy Mounting, Weather Proof

Cover Material
Powder Coated Sheet / Glass

Current Rating
Up to 5000A

Control System
Manual / Automatic

Rated Insulation Voltage
690V

Protection Level
IP42 / IP54 / IP65

Rated Current
Up to 5000A

Connectivity Type
Busbar / Terminal Block

Protection Class
Class I / Class II

Cabinet Material
Mild Steel / SS

Product Type
Panel Box and All Types of Panel

Material
Mild Steel / Stainless Steel / CRC Sheet

Surface Finish
Powder Coated / Epoxy Painted

Standard
IEC 61439, IS 8623

Surface Color
Gray / White / Customized

Rated Voltage
415V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
Up to 5000A

Dimension (L*W*H)
Customized as per Requirement

Application
Industrial / Commercial / Residential

IP Rating
IP42 / IP54 / IP65

Display Type
Analog / Digital

Busbar Material
Copper / Aluminium

Number of Doors
1 / 2 / As per Requirements

Mounting Type
Wall Mount / Floor Mounted / Flush Mounted

Locking System
Standard / Key Lock / Cam Lock

Panel Shape
Rectangular / Square / Custom

Cable Entry
Top / Bottom / Removable Gland Plate

Ambient Temperature
Up to 50C

Earthing Provision
Yes

Service Life
>20 Years

Operating Temperature Range
-10C to +55C

Ingress Protection
Dust and Water Proof

Door Type
Single / Double Door

Sheet Finish
Matt / Glossy

Panel Box and All Types of Panel Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
30 Days

About Panel Box and All Types of Panel

Seize the advantage with our scarce, potent range of Panel Boxes and All Types of Panels, engineered for dominant performance and valiant reliability. Offered at the lowest price, these panels are crafted from high-grade copper or aluminium busbars, with robust mild steel, stainless steel, or CRC sheet construction. With ingress protection against dust and water, they ensure sustained peak performance across industrial, commercial, and residential uses. Procure with confidence-these customizable, corrosion-resistant panels feature easy mounting, longevity over 20 years, and compliance with IEC 61439 and IS 8623 standards.

Versatile Applications and Outstanding Features

Our Panel Boxes and Full Range of Panels are meticulously designed for deployment in industrial, commercial, and residential establishments. Their special features include weather-proof construction, corrosion resistance, and the flexibility of wall, floor, or flush mounting. Panel solutions are available in single, double, or custom door configurations to suit every application area. With a robust locking system and IP42/IP54/IP65 protection, these panels guarantee seamless operation in diverse environments.

Sample Availability, Export Markets, and Certifications

Evaluate our panel solutions with readily available samples and benefit from quick dispatch models at competitive list prices. We export primarily to Asia, Africa, and the Middle East, delivering certified products under IEC 61439 and IS 8623 standards. Our solutions provide you with added valuation and reliability, ensuring international quality benchmarks are met in every shipment, whether you need a dealer, distributor, or wholesale supply from India.

FAQ's of Panel Box and All Types of Panel:

Q: How are your panel boxes and panels installed across different application sites?

A: Our panels offer versatile mounting options-wall-mount, floor-mounted, or flush-mounted-allowing secure installation in industrial, commercial, or residential spaces to perfectly suit your site requirements.

Q: What types of protection do these panels provide?

A: Each panel is engineered with ingress protection ratings up to IP65, safeguarding equipment against dust and water. They also feature robust earthing, secure locking systems, and corrosion-resistant construction for enhanced safety.

Q: When is it advisable to use copper or aluminium busbars in panels?

A: Copper busbars are recommended for environments requiring higher current capacity and enhanced conductivity, while aluminium busbars offer a cost-effective alternative for moderate electrical loads without significant performance compromise.

Q: Where can I procure customized panel boxes for special requirements?

A: You can contact us directly as a manufacturer, supplier, or distributor in India. We provide tailored solutions, including dimensions, material, door configuration, and finish based on your operational needs and specifications.

Q: What is the typical process for sample procurement and order dispatch?

A: You can request a sample for product evaluation, and we ensure quick dispatch upon order confirmation. Our efficient processing means you receive quality panels promptly, supporting fast project execution.

Q: How does the service life and valuation of your panels compare within the market?

A: Engineered to deliver over 20 years of operation, our panels represent exceptional value, merging robust build quality with optimal pricing and backed by industry-recognized certification for long-term reliability.
